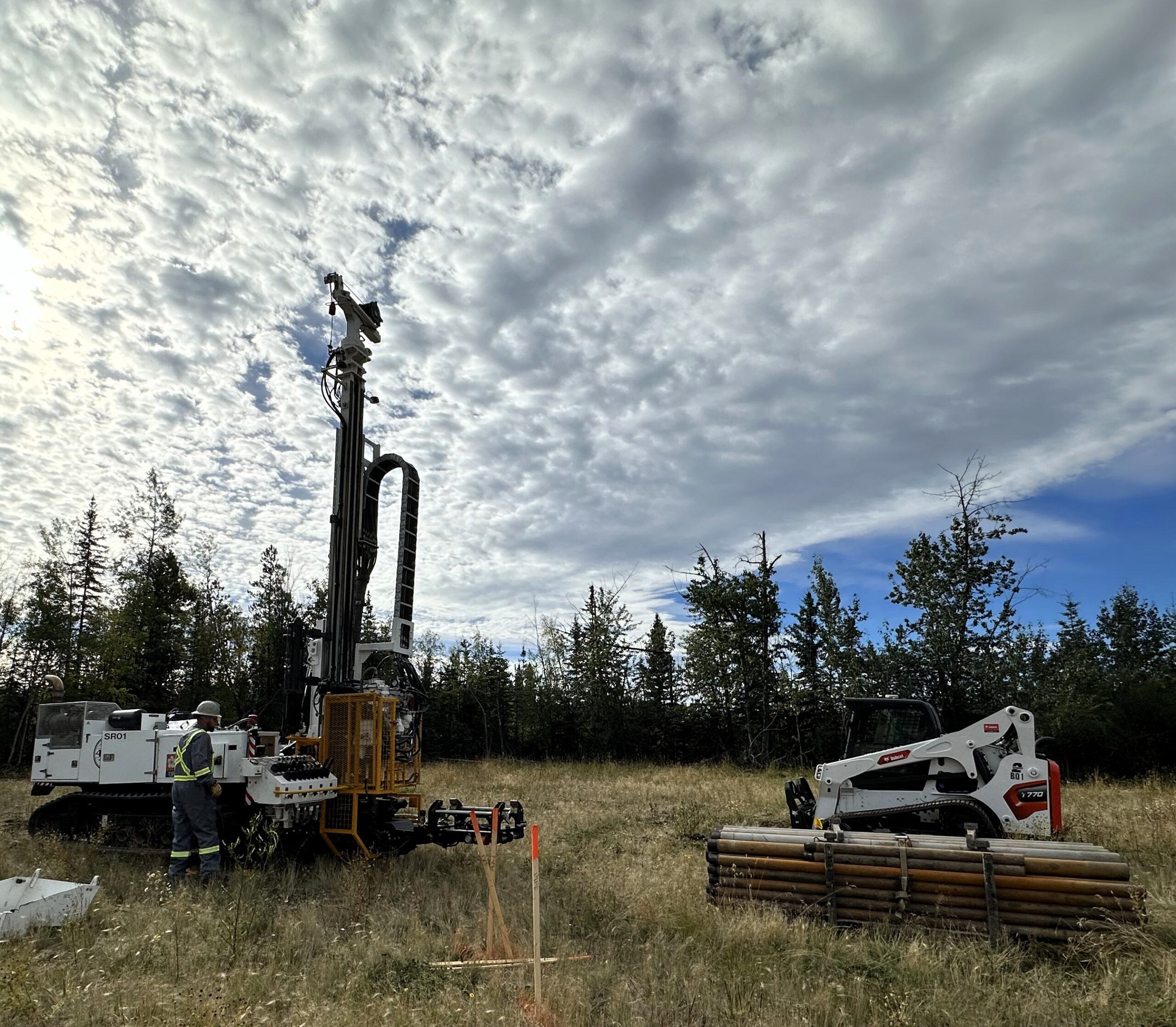

LS 450 Boart Longyear Sonic Drill

The LS450 is a compact rig perfect for various environmental, geotechnical, water, and mining projects. This rig features the power and precision of the large-format series rigs, the LS 450 brings our innovative head technology to an industry-proven compact, track-mounted platform.

Sonic drilling is an advanced form of drilling which employs the use of high-frequency, resonant energy generated inside the Sonic head to advance a core barrel or casing into subsurface formations. During the drilling process, the resonant energy is transferred down the drill string to the bit face at various sonic frequencies. Simultaneously rotating the
drill string evenly distributes the energy and impact at the bit face.

Features:

Enhanced Safety
Compact Footprint
Easy Operation and Maintenance
Increased Precision
High-efficiency Rotation and Oscillation Unit
Increased Accessibility (0.3 Bar/4 PSI)
50,000 lbs. Force
150 Hz Sonic Power

Benefits of Sonic Drilling:

Cleaner and Safer
Faster penetration rates
Ability to sample without the use of water, air or mud
Depths to 800ft
Continuous core sample from 4″ to 10″
Eliminates bridging during well installation
